Tube laser cutting

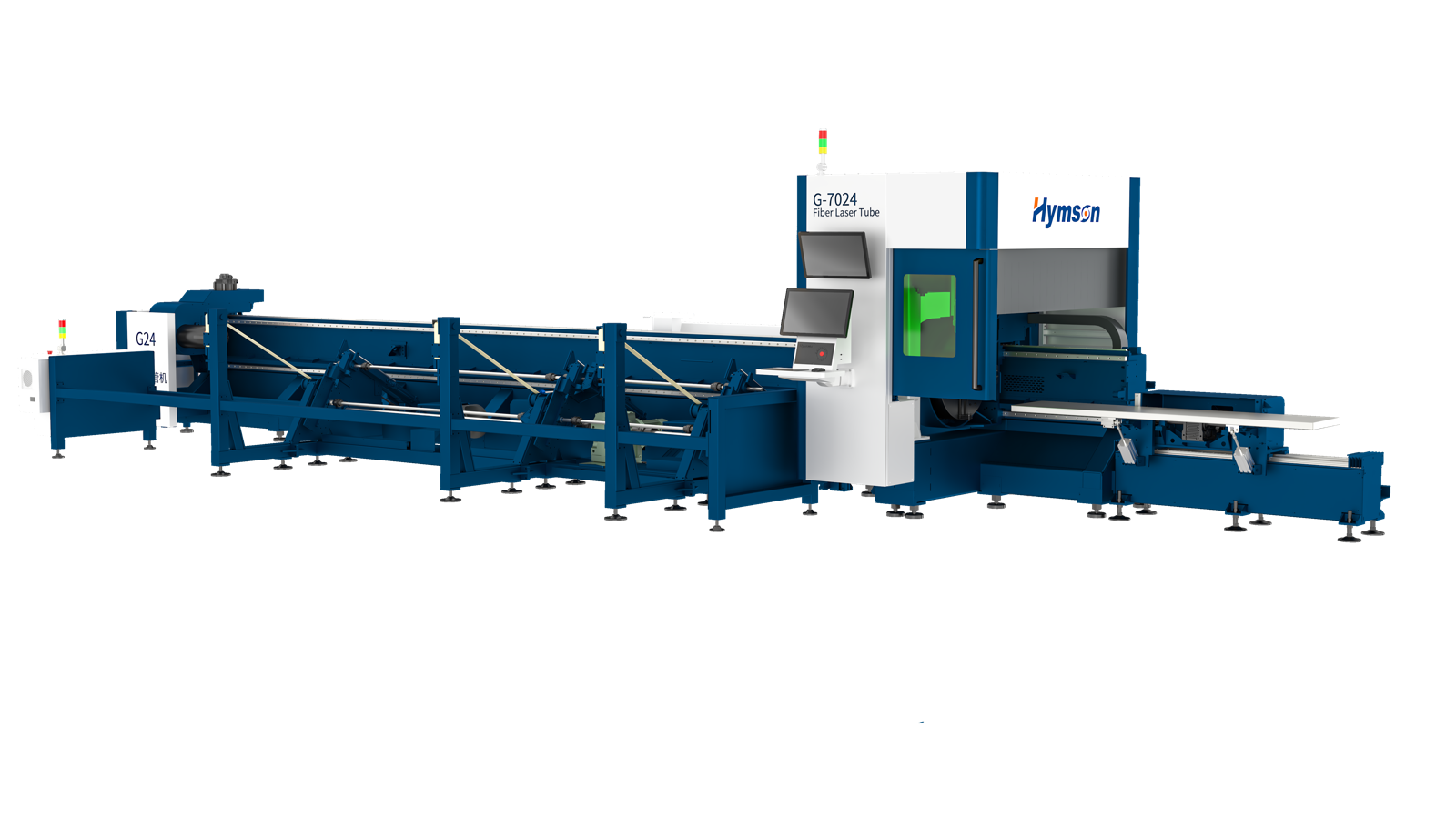

G Series Fiber Laser Tube Cutting Machine
Hymson's G7012/G7024 Series is an upgraded laser tube cutting platform designed for high-efficiency processing of small and medium-sized tubes. The side-hanging machine body, automatic feeding options, pneumatic fully sealed integral chuck and FSCUT professional tube cutting system work together to improve cutting speed, accuracy, dust protection and material utilisation.
Machine video
Watch the high-speed G Series tube laser in operation.
This supplied machine video helps customers see the tube cutting workflow, automatic feeding concept, machine movement and production presence before they discuss a suitable G7012 or G7024 configuration with RoboLaser.
Side-hanging machine body
New side-hanging structure and feeding mechanism support an all-round improvement in processing efficiency.
Fully sealed pneumatic chuck
The integral pneumatic chuck is more stable, supports high machining precision and improves dust prevention.
FSCUT tube cutting system
Professional FSCUT tube software integrates multiple tube cutting functions for efficient programming and cutting.
Loading and short-tail options
Optional full-automatic or semi-automatic loading can reduce labour cost, while short-tail cutting maximises tube usage.
Model range
G7012 and G7024 tube capacity.
G7012 round tubeΦ5-Φ120mm
G7024 round tubeΦ10-Φ240mm
G7012 max tube weight150kg
G7024 max tube weight300kg
G7012 chuck speed180r/min
G7024 chuck speed120r/min
X/Y max acceleration1.5G / 1.2G
Machine dimensions13000 x 3500 x 2800mm
Project enquiry
Tell us what you cut. We will help narrow the machine options.
Share the product you are considering, your material mix, thickness range, part size, production volume and timeline. RoboLaser can then recommend a practical configuration.
