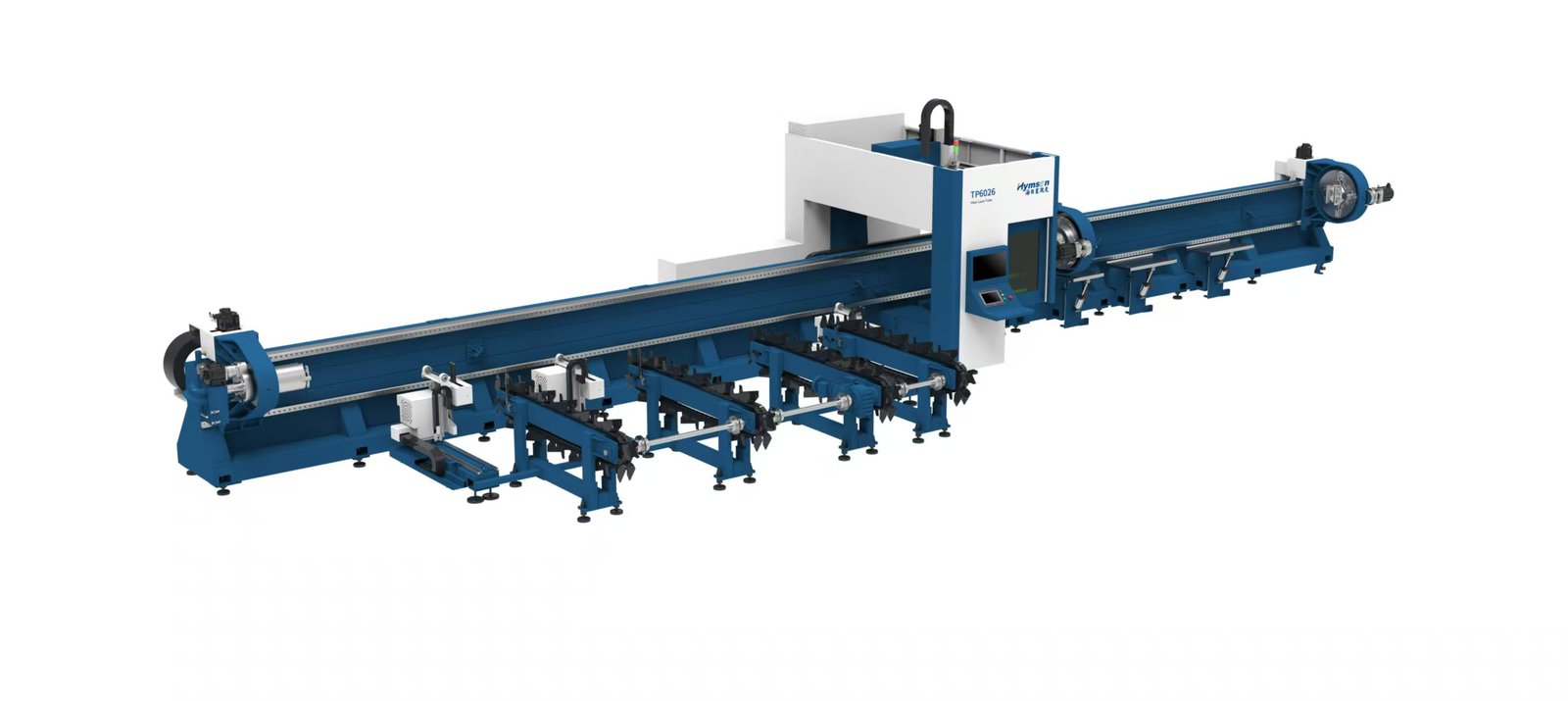

TP Series Three Chuck Fiber Laser Tube Cutting Machine
TP Series is designed for long-tube production where stronger support, coordinated chuck movement and lower tailing waste are important. The three-chuck structure helps stabilise long materials, reduce manual handling and improve the material utilisation rate on round, square, rectangular and special tube jobs.
Three chuck
Zero-tail workflow
Long tube support
Product description
Three-chuck control for long-pipe cutting and reduced waste.
The TP Series is a practical choice when tube length, weight and material loss become the main production concerns. The three-chuck layout allows the machine to clamp, transfer and support the tube through different cutting stages, helping improve accuracy while reducing the final remnant.
Side-hanging strong body
Side-hanging machine body and feeding mechanism improve overall processing efficiency for tube production.
Efficient three-chuck linkage
Three chucks coordinate clamping and movement to support higher cutting accuracy and reduce tube tailing.
Follow-up auxiliary support
Servo follow-up support raises and tracks the tube so long material stays steadier during rotation and cutting.
Servo unloading platform
Follow-up unloading can reduce manual handling, support different lengths and protect finished parts.

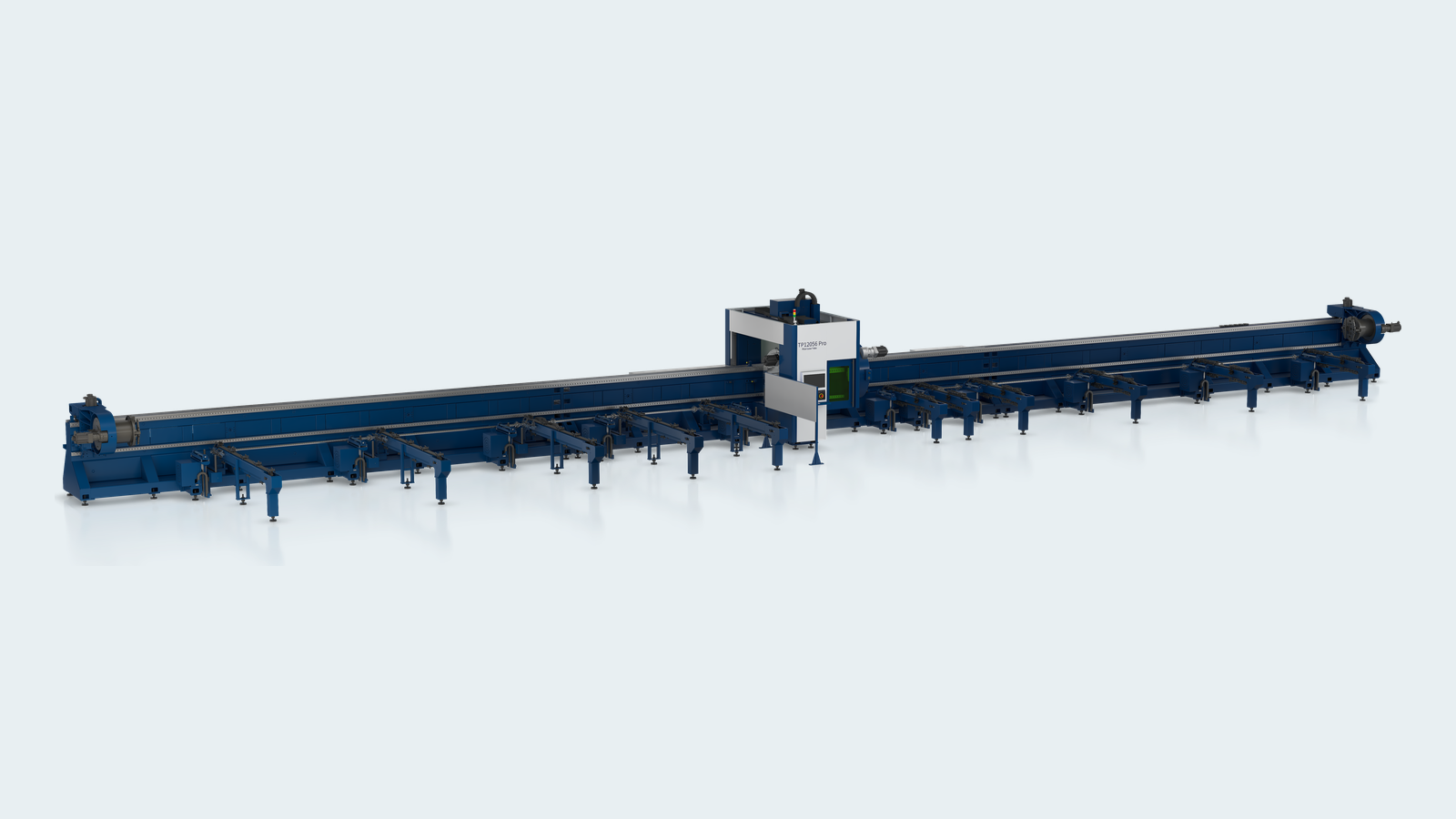

Machine structure
Made for long tubes, better holding and lower remnant cost.
The TP platform is configured around stable tube support and material utilisation. RoboLaser can review your tube length, diameter, wall thickness, loading method and unloading needs before recommending the right TP configuration.
Machine layoutSide-hanging tube laser platform
Chuck systemThree-chuck coordinated linkage
Material utilisationZero-tail cutting workflow
SupportServo follow-up auxiliary support
UnloadingServo follow-up unloading platform
ApplicationsLong pipe, frames and structural tube
Machine video
Show the TP12056 Pro three-chuck system in motion.
Use the supplied TP12056 Pro video to demonstrate machine scale, chuck movement, long-tube support and the production workflow before customers request a quote.
