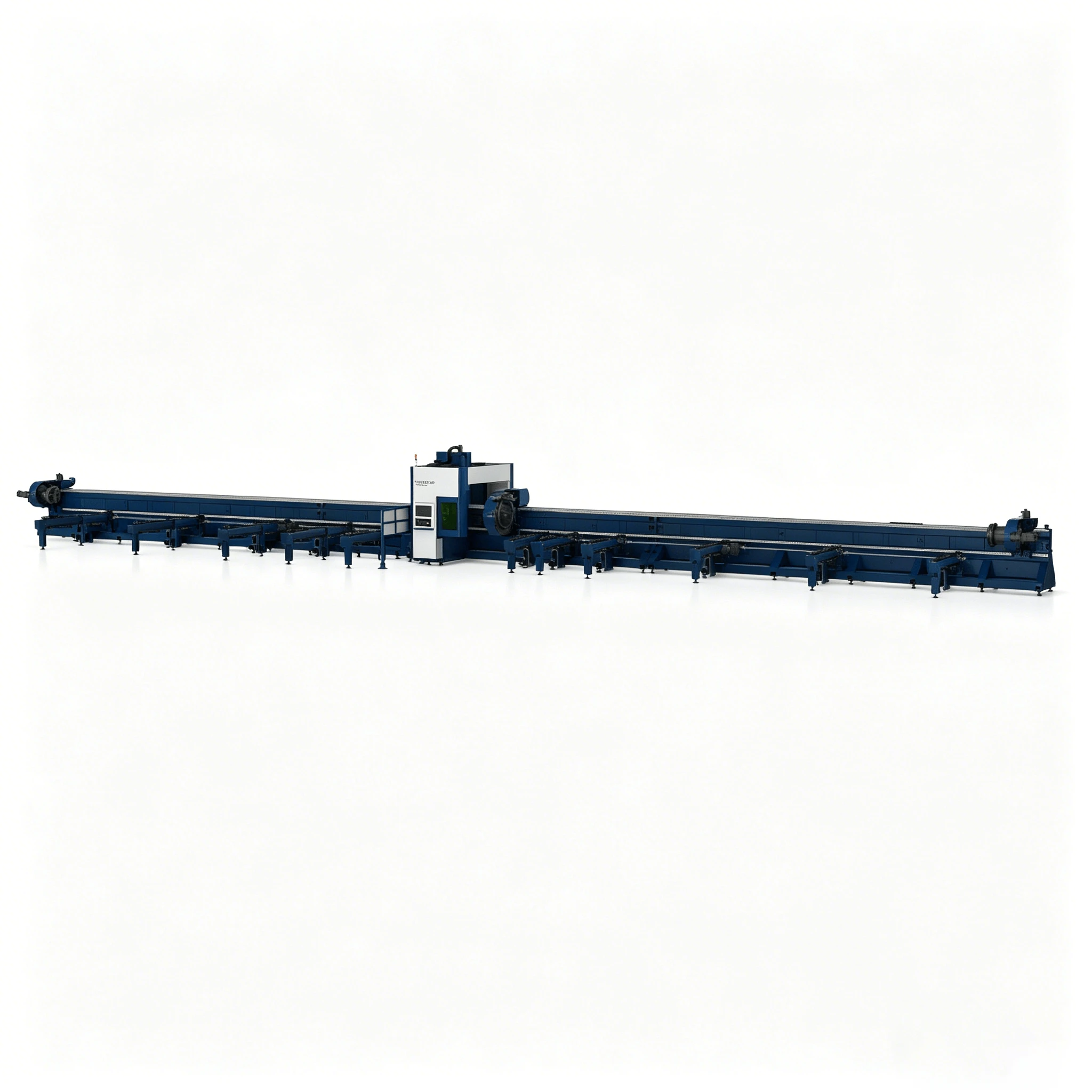

FP Series Four Chuck Fiber Laser Tube Cutting Machine
A customised heavy-duty four chuck fiber laser tube cutting machine designed for large, long, and heavy tube processing. Built for shipbuilding, heavy industry, and structural fabrication. It offers stable multi-chuck clamping, high load capacity, 12m material handling, short tail material control, and optional bevel cutting capability for demanding industrial applications.
12m
Material Handling
4 Chuck
Clamping System
Heavy-Duty
Load Capacity
Product Overview
The FP Series is a customised heavy-duty four chuck fiber laser tube cutting machine designed for large, long, and heavy tube processing. Unlike standard tube laser machines designed mainly for general fabrication, the FP Series is built around load capacity, stable long-tube handling, multi-chuck precision, and optional bevel cutting capability.
Ideal for demanding industrial applications including shipbuilding, heavy industry, and structural fabrication, the FP Series delivers the specialized capabilities needed for complex tube cutting operations. With its stable multi-chuck clamping system, 12m material handling capability, short tail material control, and optional bevel cutting, it provides a comprehensive solution for heavy-duty tube processing.
Core Features
Engineered specifically for large, long, and heavy tube processing with advanced capabilities.
Multi-Chuck Clamping
Stable four-chuck clamping system for precise positioning of large and heavy tubes.
12m Material Handling
Extended material handling capability for processing long tubes and structural members.
Heavy-Duty Load Capacity
Engineered to handle large and heavy tubes with stable, reliable performance.
Short Tail Control
Advanced material control system for minimal waste and efficient processing.
Optional Bevel Cutting
Optional bevel cutting capability for complex fabrication requirements.
Industrial Grade
Built for demanding applications in shipbuilding, heavy industry, and fabrication.
Technical Specifications
Model Parameters
| Specification | Details |
|---|---|
| Machine Type | Four Chuck Fiber Laser Tube Cutting Machine |
| Design Focus | Large, long, and heavy tube processing |
| Clamping System | Stable multi-chuck clamping (4 chucks) |
| Material Handling | 12m capability |
| Load Capacity | Heavy-duty rated |
| Tail Material Control | Short tail material control system |
| Bevel Cutting | Optional capability |
| Primary Applications | Shipbuilding, heavy industry, structural fabrication |
| Customization | Fully customizable for specific requirements |
