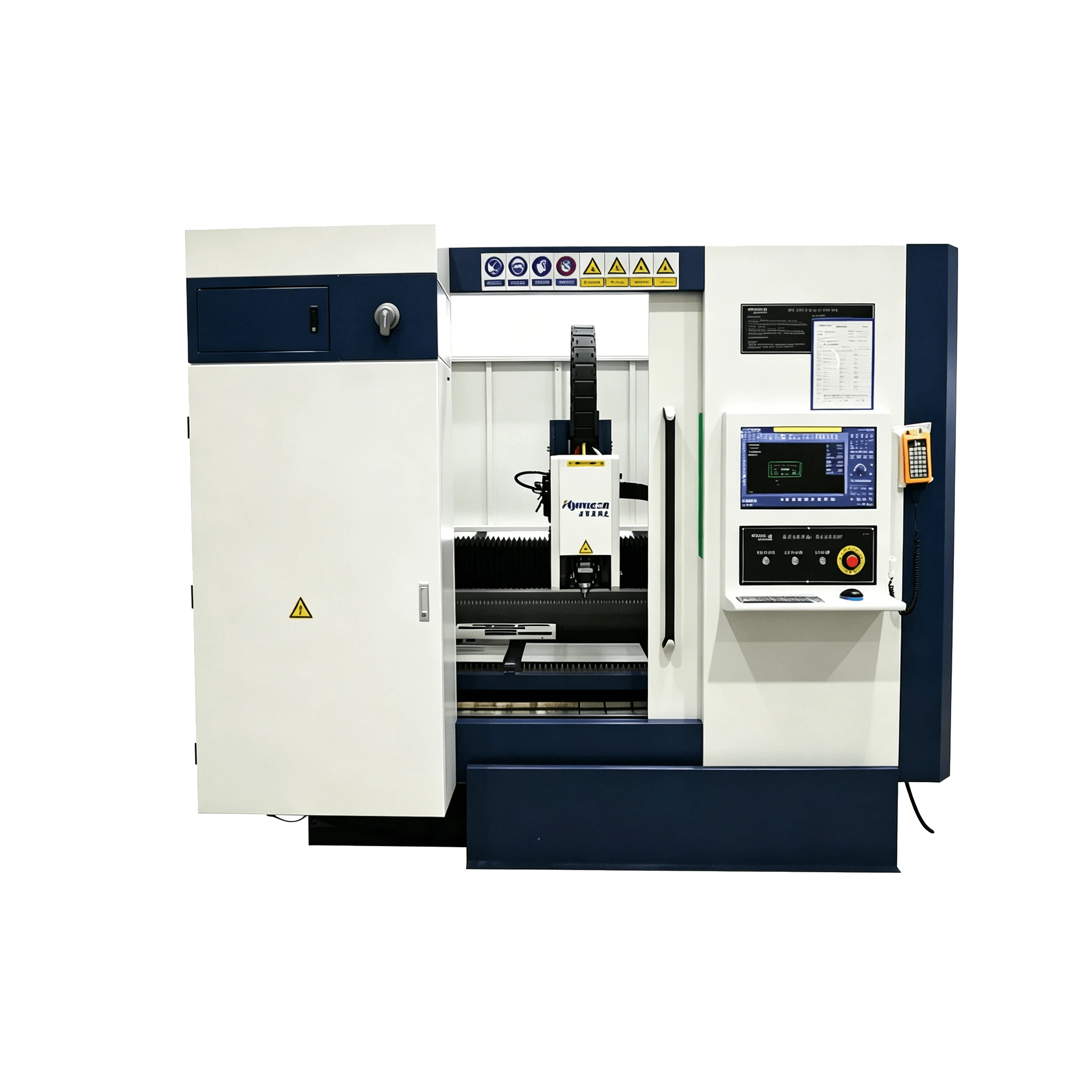

HF-B Series Heavy-Duty High-Power Sheet Laser Cutting Machine
A high-power fiber laser cutting machine designed for heavy-duty sheet metal processing. With a dual shuttle table, reinforced machine structure, intelligent zoned extraction, and automation-ready architecture, it delivers stable, precise, and efficient cutting for thick carbon steel, stainless steel, aluminum, copper, and other metal plates.
12000W–60000W
Power Range
140
Max Speed (m/min)
±0.03
Accuracy (mm)
Product Overview
The HF-B Series is a heavy-duty, high-power fiber laser cutting machine engineered for manufacturers that need more than just speed. Built for stable, continuous processing of thick and ultra-thick metal plates, it is a strong fit for demanding fabrication environments such as construction machinery, steel structure production, shipbuilding, heavy equipment, and general industrial manufacturing.
This machine combines high-power processing capability, structural stability, and future-ready automation potential. With its dual shuttle platform, reinforced machine design, intelligent extraction system, and smart control architecture, it helps businesses increase throughput, maintain cutting consistency, and build a more scalable production workflow.
Key Positioning
Heavy-Duty Performance
Engineered for manufacturers that need more than just speed. Built for stable, continuous processing of thick and ultra-thick metal plates.
Demanding Environments
Strong fit for demanding fabrication environments such as construction machinery, steel structure production, shipbuilding, and heavy equipment manufacturing.
Reinforced Structure
Maintains cutting accuracy and structural stability under demanding operating conditions with high-strength welded frame and stress-relief treatment.
Automation Ready
Built with future expansion in mind. Can be integrated with automatic loading and unloading systems, material storage, and flexible manufacturing solutions.
Key Strengths
Comprehensive capabilities designed for heavy-duty industrial applications
Reinforced Platform
Designed to support high laser power over long production cycles with high-strength welded frame and stress-relief treatment.
High Power Capability
12000W–60000W power range for processing thick and ultra-thick metal plates with stable performance.
Dual Shuttle Table
Improves production efficiency by allowing loading and unloading while cutting continues on the alternate table, reducing idle time.
Thermal Compensation
Advanced thermal compensation logic and multi-point support balancing maintains accuracy under demanding conditions.
Smart Extraction
Intelligent zoned extraction system provides more efficient dust removal only where needed, reducing energy use.
Automation Integration
FSCUT bus control system with intelligent processing support, process database management, and MES/ERP integration capability.
Technical Specifications
Model Parameters
| Specification | Details |
|---|---|
| Machine Type | High-Power Dual-Platform Fiber Laser Cutting Machine |
| Power Range | 12000W–60000W |
| Working Area Options | 3015 / 4020 / 6326 / 8025 / 13028 |
| Max X/Y Positioning Speed | 140 mm/min |
| Max X/Y Acceleration | Up to 1.5G |
| Max Z-axis Speed | 60 mm/min |
| Positioning Accuracy | ±0.03 mm/min |
| Table Type | Dual Shuttle Table |
| Control System | FSCUT Bus Control System |
| Suitable Materials | Carbon Steel, Stainless Steel, Aluminum, Copper, Galvanised Sheet, Electrolytic Sheet, Silicon Steel |
| Dust Extraction | Intelligent Zoned Extraction System |
| Automation Expansion | Automatic loading/unloading, storage, FMS, MES/ERP integration |
Detailed Model Specifications
| Model | Cutting Range | Accuracy | Max Speed | Acceleration | Z Speed | Floor Space |
|---|---|---|---|---|---|---|
| HF3015B | 3m × 1.5m | ±0.03 mm/min | 140 mm/min | 1.5G | 60 mm/min | 8m × 5.9m |
| HF4020B | 4.1m × 2.1m | ±0.03 mm/min | 140 mm/min | 1.5G | 60 mm/min | 10.5m × 5.9m |
| HF6326B | 6.3m × 2.6m | ±0.03 mm/min | 140 mm/min | 1.2G | 60 mm/min | 15m × 7m |
| HF8025B | 8m × 2.5m | ±0.03 mm/min | 140 mm/min | 1.2G | 60 mm/min | 20m × 7m |
| HF13028B | 13m × 2.8m | ±0.03 mm/min | 140 mm/min | 1.2G | 60 mm/min | 28m × 7m |
See It In Action
Watch the HF-B Series in operation and learn how it handles heavy-duty cutting tasks.
Machine Overview
Complete walkthrough of the HF-B Series heavy-duty laser cutting machine and its capabilities.
Heavy-Duty Cutting Demo
See the power and precision in action with thick metal plates and large format materials.
