Description

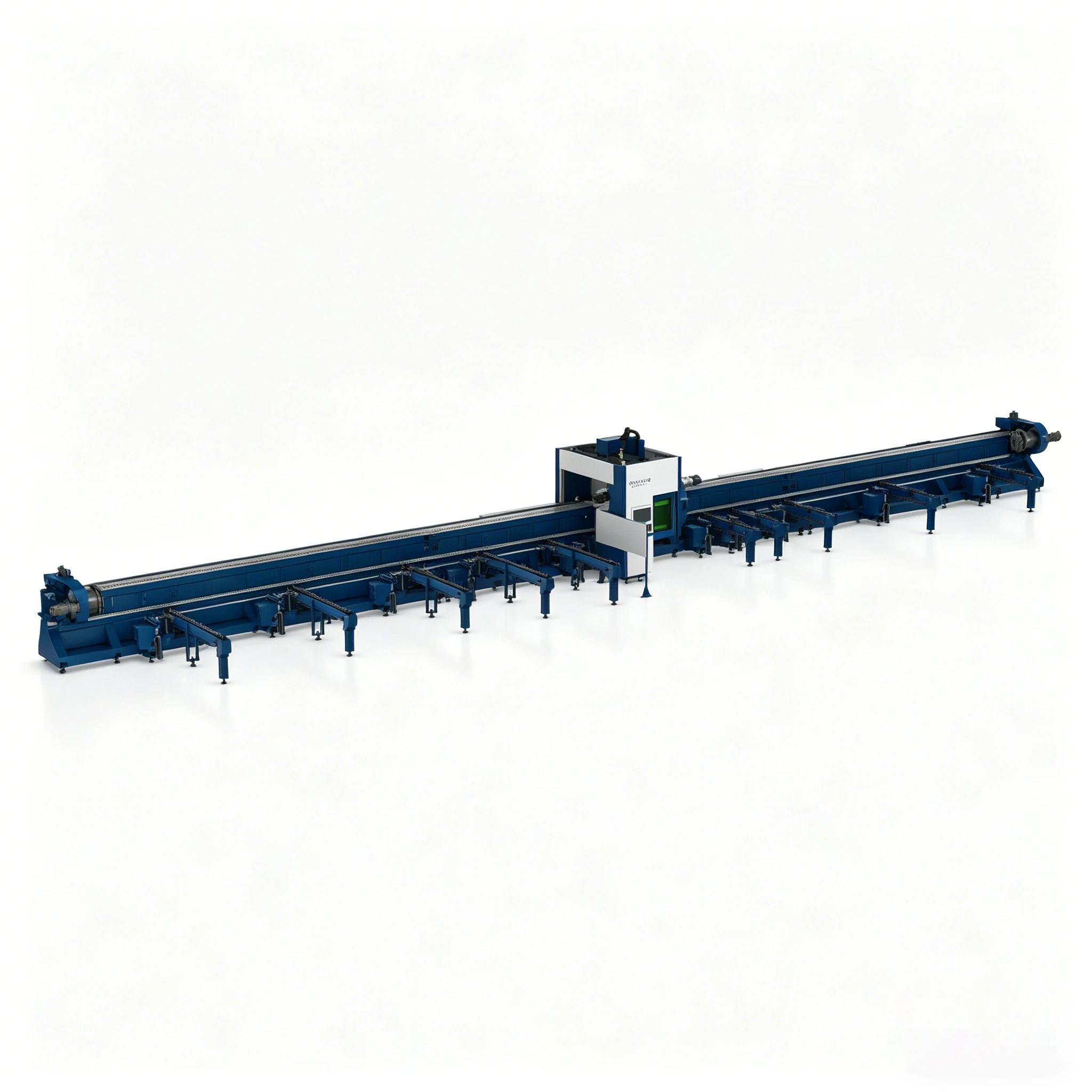

TP Series Three Chuck Tube Laser Cutting Machine
The TP Series Three Chuck Fiber Laser Tube Cutting Machine is a professional tube processing solution built for manufacturers that need stable, accurate, and efficient cutting of long and heavy tubes. Compared with standard tube laser cutting machines, the TP Series is better suited to demanding production environments where material utilisation, clamping stability, and long workpiece handling are critical.
3
Precision Chucks
Zero Tail
Material Concept
900kg
Max Load (TP9028)
Overview
Key Positioning:
At the core of the machine is a high-precision three-chuck design. This structure improves clamping stability throughout the cutting process and makes it easier to process longer tubes by improving the linkage efficiency between the three chucks. The machine helps keep tube movement stable during feeding, rotation, and cutting, which supports more reliable cutting accuracy and smoother overall production.
Detailed Description:
A major advantage of the TP Series is its zero-tail-material concept, developed to improve raw material utilisation and reduce production waste. For customers processing large volumes of carbon steel, stainless steel, round tubes, square tubes, and rectangular tubes, lower tail material can directly contribute to better cost efficiency over time. This makes the machine particularly attractive to metal fabricators focused on reducing waste without compromising throughput.
The machine also features a side-hanging super strong machine body, using a honeycomb welding structure and annealing treatment to reduce internal stress and improve long-term rigidity. This design supports stable operation even when handling heavier tubes and more demanding workloads. To further improve processing stability, the TP Series includes servo follow-up auxiliary support to reduce tube swing and vibration during rotation and feeding, as well as a servo follow-up unloading platform that adapts to different workspace lengths for smoother unloading and better production continuity.
Overall, the TP Series is a strong choice for customers who need a professional laser tube cutting machine for long tubes, heavy tubes, and high material-efficiency production. It is especially suitable for structural fabrication, machinery manufacturing, and industrial tube processing environments where stable clamping, reduced waste, and consistent cutting quality matter.
Application Range:
The TP Series is suitable for round, square, rectangular, and special tube profiles in carbon steel and stainless steel, making it a practical solution for structural and industrial fabrication, machinery manufacturing, and industrial tube processing environments where stable clamping, reduced waste, and consistent cutting quality matter.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TP6026 / TP9028 |
| Tube Type (TP6026) | Circular: Ø20–260 mm; Square/Rectangle: □20–260 mm |
| Tube Type (TP9028) | Circular: Ø60–280 mm; Square/Rectangle: □100–280 mm |
| Power (TP6026) | 3000W–6000W |
| Power (TP9028) | 3000W–6000W |
| Cutting Residual Material Length | 90 mm |
| Material Loading Length (TP6026) | 6000 mm |
| Material Loading Length (TP9028) | 9000 mm |
| Maximum Weight (TP6026) | 300 kg |
| Maximum Weight (TP9028) | 900 kg |
| Floor Space (TP6026) | 16000 × 4000 mm |
| Floor Space (TP9028) | 20000 × 5000 mm |
Core Features
Three-Chuck Precision
High-precision structure improves clamping stability.
Long Tube Capable
Designed for demanding tube applications.
Zero Tail Material
Improves material utilisation and reduces waste.
Heavy-Duty Body
Honeycomb structure with annealing treatment.
Servo Follow-Up
Reduces tube swing and vibration during processing.
Industrial Solution
Suitable for structural and industrial fabrication.
