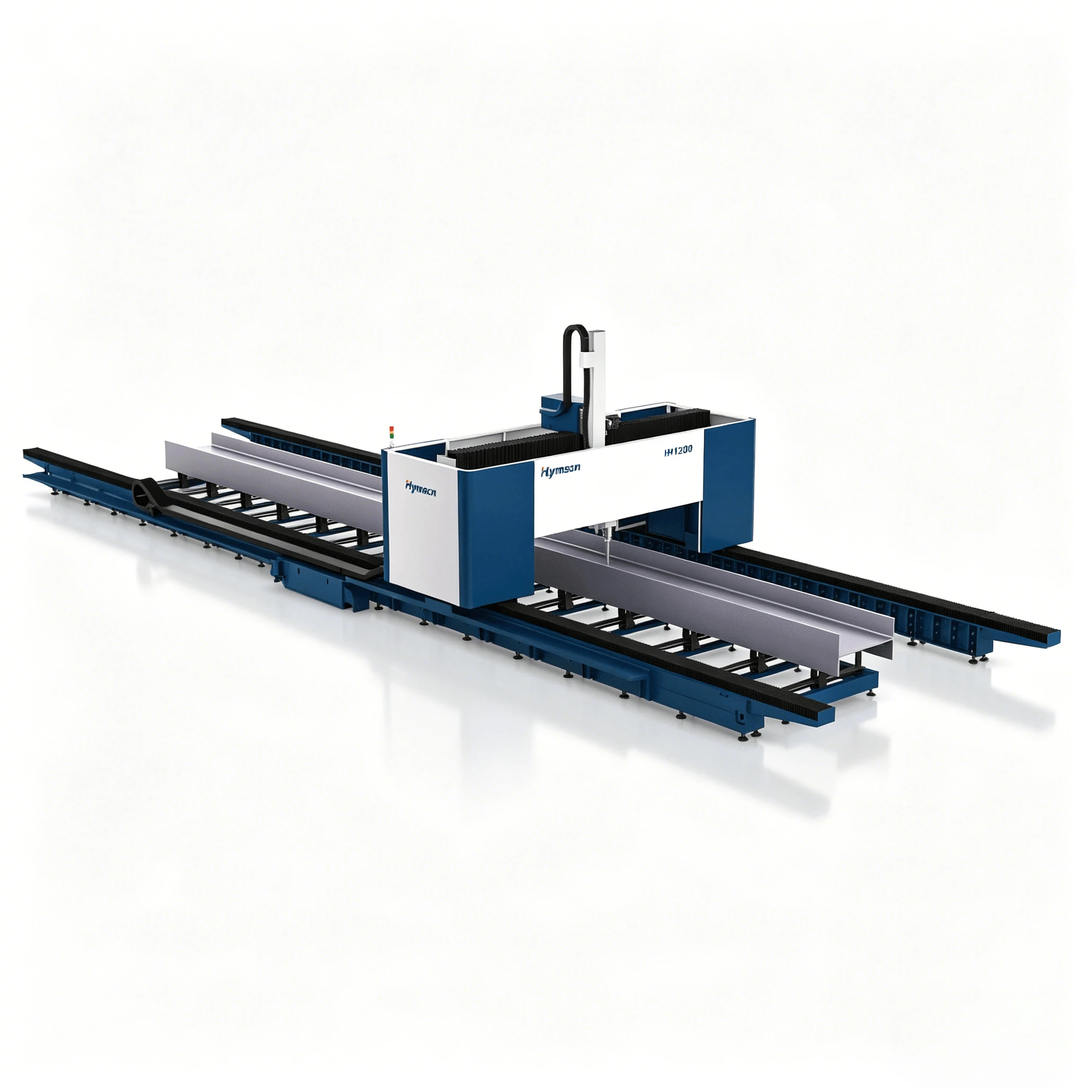

HF-HP Series Special Profile Laser Cutting Machine
An efficient solution created specifically for structural steel fabrication. Designed for processing H-beams, channel steel, single steel, T-beams, steel plates, and other structural profiles with integrated cutting, hole processing, beveling, and marking capabilities.
Up to 45°
Bevel Capability
0.1
Accuracy (mm/min)
60
Max Speed (mm/min)
Product Overview
The HF-HP Series is an efficient solution created specifically for structural steel fabrication. It is designed for processing H-beams, channel steel, single steel, T-beams, steel plates, and other structural profiles. The machine supports cutting, hole processing, beveling, and marking within a more integrated production workflow.
With its segmented high-strength machine structure, gantry beam design, and dedicated steel profile nesting software support, the HF-HP Series is ideal for large and heavy profile processing with stable accuracy. It is compatible with NC program import, Tekla, and 3D software outputs such as STEP and IGS, making it ready for more automated processing and production line integration.
Core Features
Engineered specifically for structural steel fabrication with integrated processing capabilities.
Steel Structure Focused
Built specifically for the steel structure industry with dedicated nesting software.
Multi-Profile Support
Suitable for H-beams, channel steel, angle steel, T-beams, and steel plates.
Integrated Processing
Supports cutting, hole processing, beveling, and marking in one system.
High-Strength Structure
Segmented high-strength machine structure for stable processing of large profiles.
Gantry Beam Design
Reliable heavy-duty operation with dedicated cutting platform.
Software Integration
Compatible with NC program import, Tekla, STEP, and IGS software outputs.
Technical Specifications
Model Parameters
| Specification | Details |
|---|---|
| Machine Type | Special Profile Laser Cutting Machine |
| Suitable Profiles | H-beam, Channel Steel, Angle Steel, T-beam, Steel Plate |
| Processing Functions | Cutting, Hole Processing, Beveling, Marking |
| Max Positioning Speed | 60 mm/min |
| Max Acceleration | 0.5 g |
| Positioning Accuracy | 0.1 mm/min |
| Bevel Capability | Up to 45° |
| Machine Structure | Segmented High-Strength Structure |
Cutting Performance Demo
See the precision cutting, beveling, and hole processing capabilities in action.
